Strap WarmWire & Cable 25 Ft

SKU: 321301

WarmWire CableStrap is used to hold WarmWire Cables in place on the subfloor surface at the spacing you choose. All 3 spacing options 2, 2.5 and 3 inches can be maintained using this thin metal strapping.

WarmWire is typically spaced at 3 inches on center. For areas with high heat loss, the spacing can be narrowed to 2.5 inches for added warmth.

Order 1 roll of CableStrap (25 ft in length) for each 40 to 50 Square Feet of WarmWire to be installed (not linear feet of cable) WarmWire cable is sold separately.

Cut the CableStrap to length using ordinary snips. You can anchor the strap with Screws on plywood or backer board and with spray glue, hot glue, or 2-sided tape on concrete.

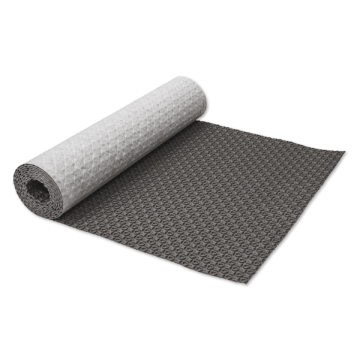

CableStrap is a more economical alternative to HeatMatrix Membrane.

  • Vertical tabs are spaced 1 inch apart
  • Horizontal tabs provide extra half-inch measurements
  • Thin profile

CableStrap can also be used to install ProMelt cables on top of existing concrete, although the ProMelt cable is thicker and doesn't fit the tabs as well.

Instructions + Video

Instruction Manual Link

WarmWire Cable Installation Manual

Video

Specifications

UPC 840213080518
Manufacturer Watts Radiant

More Details

Reviews

Customer Reviews

Overall
Not impressed
Review by
This doesn't really keep the cable separated at the recommended spacing. I would have to put a severe bend in the cable to route it the way the instructions state. Not comfortable with that. I ended up starting the bend one notch earlier and supplementing with hot glue to get the path I wanted. This strap might be good for securing in the middle of the long runs.
Overall
Great stuff
Review by
Installed in two bathrooms. Very pleased.
Overall
Floor works great!! Excellent product.
Review by
Floor works great!! Excellent product.
