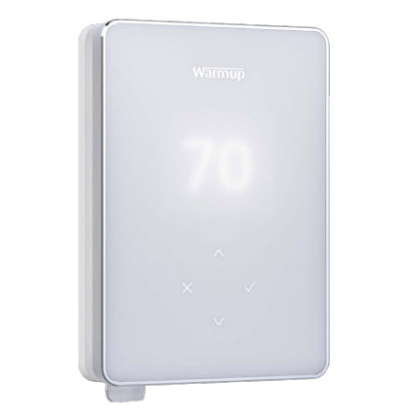

Warmup Terra Basic Wi-Fi Smart Thermostat White Uses MyHeating App
The Warmup TERRA Wi-Fi Thermostat is a simple and stylish option for Wi-Fi control of electric floor heating systems.
The Terra WiFi Thermostat utilizes simple touch buttons for accurate control of your underfloor heating system. Its sleek, unobtrusive design will suit any home décor.
Installation and set-up are done in a matter of seconds, simply scan the QR code on the Terra thermostat using the MyHeating app on your smartphone or tablet and it will automatically connect to your WiFi network.
Warmup's app was developed and operated with data encryption and high security.
The Terra works with all of our advanced energy-saving features in the MyHeating app such as SmartGeo. SmartGeo is a unique technology developed by Warmup and built into the MyHeating App that uses an advanced algorithm to understand the most efficient heat settings for your home.
Working automatically; it learns your routines and location through background communication with your smartphone and lowers temperatures when you are away, only rising them up to your ideal comfort temperature in time for your arrival home saving you money and energy.
Terra offers a 12 Year Warranty when installed with a Warmup heating system.
- Simple touch buttons for accurate control of your underfloor heating system.
- The sleek, unobtrusive design will suit any home décor
- SmartGeo means your thermostat learns over time and adjusts your heating accordingly - if you want to enable it - providing optimal heating management
- Weather-based Early Start. Turns the heating on at just the right time to be warm when scheduled - no overheating or wasted energy. Takes into account the weather forecast for warmth just when you wanted, even on cold days, and no wasted energy overheating on warm days.
- Controls most electric floor heating systems and baseboard heaters, using the included floor or built-in air sensor
- Stylish White color with beveled chrome edges
- 12 Year Warranty with Warmup heating
- 10 Ft floor sensor included
Instructions + Video
Warmup TERRA Thermostat Specs Operating & Installation Manual
Indoor mount only
Specifications
| Size in Inches | 4-1/2" H X 3-1/8" W x 2" total depth (1-1/8" inside wall) |
|---|---|
| Visible Depth | 7/8" |
| Floor Sensor Length Ft | 10 Ft |
| Floor Sensor Length Meters | 3m |
| GFCI / GFEP Protection | GFCI protection is built-in for safety; use standard Breaker only |
| Manual Override | Yes |
| Display Height | 1.75" diagonal |
More Details
| What's In The Box | Thermostat, mounting screws, 1 floor sensor |
|---|---|
| Warranty from Manufacturer | 12 Yr Warranty |
| Manufacturer | Warmup |
| Safety Listing | ETL Approved Safety Listed in USA & Canada to UL standards |
| National Electric Code reference | ETL Approved Safety Listed in USA & Canada to UL standards |
| Canadian Electric Code reference | ETL Approved Safety Listed in USA & Canada to UL standards |
| Maximum Setting Temp | 104 º F (40 C) |
| On/Off Switch for complete shutdown @ end of heating season | Yes, can be turned off |
| Senses Ambient Air Temperature | Yes, Ambient Air Mode |
| Senses Ambient Air w/ Floor Temp option | 3 Modes: Floor, Air, Air with floor limit |
| Minimum Display Temp | +32°F to 122°F (0°C to +50°C) |
| Maximum Display Temp | +32°F to 122°F (0°C to +50°C) |
| Programming Method | Smart |
| Thermostat Type | WiFi |
