Details
New item-replaces Nuheat cable kit N1C029036 which is discontinued by Nuheat.
Nuheat Cable is an Electric Radiant Floor Heating system designed to allow installers to customize the layout instantly making adjustments to the floor heating coverage for any room. The flexible installation method lets you heat floors with curves or angles and work around obstructions like floor heating vents.
Features:
Nuheat Cable is an alternative to Custom Nuheat Mats, but takes more time, effort and thought since you determine and customize the layout as you go. Like Nuheat Mats, Nuheat Cables are approved for use in wet areas including shower floors and seats.
Nuheat Cable kits include enough cable guides for installation and extras are available for purchase. A Nuheat thermostat is required and sold separately.
- Specifications
-
Specifications
UPC 620713030059 Voltage 120VAC Cable Length 120' ft. feet Cable Length (inches) 1440"in. inches Cable Length (meters) 36.6m Wattage per SF 12 Watts per Sq Foot Heating Power Output per Hour (BTU) 41 BTU per Sq Ft/Hour Heating Power Output Total 1230 BTU total Power Lead Type TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max. Power Lead Length 10 Feet Power Lead Wire Gauge 18 AWG Spacing of Heating Wire 3" on center only Resistance Value 40 (Range is 38-44 ohms) Nuheat ohms range is -5% to +10% EMF (Electro Magnetic Field) Zero EMF Thermostat Control Required? Nuheat Floor sensing thermostat Conduit Required? Conduit is required for Power Leads - Instructions + Video
-
Instructions + Video
Instruction Manual Nuheat N1C030 Cable 30 sq ft kit 120V Installation Manual Skill Level Running Cable more difficult + more time than MATS. Installation only by qualified persons. Electrician recommended for wiring GFCI / GFEP Protection Required for each circuit. Built-in to all Nuheat thermostats. Maximum Circuit Load 15 Amps Maximum Circuit Overload Protection 20 A Breaker. Full Length End-to-End ground wire Yes. Repair Information Yes, Wire can be repaired. Repair kits and assistance available. Shower Installation Yes, can be installed in a tiled shower. Layout Flexibilty Yes - see examples. We provide Layout Maps only for MATS Expected Floor Temperature This is dependent on many factors. A well-insulated floor can ensure better performance. Insulation Recommended Yes; under slabs or framed floors. Cork or similar on top of Concrete Subfloor as thermal break Indoor/Outdoor? INTERIOR floor heating Application only. Embedded in Mortar only Acceptable Sub-Floors on TOP of Sub Floor (Plywood, backer board, concrete) Distance from Toilet Install 4 - 6 inches away; can be under front of toilet. Approx 20" from wall Trowel Size recommended minimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer Trowel type Recommended Heavy Duty Plastic PRO-Trowel Cut Warning No. Never cut the heating elements to shorten Minimum Install Temperature 50 Degrees F / 10 Degrees C - More Details
-
More Details

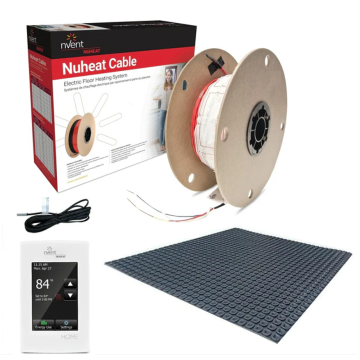

What's In The Box (1) 120ft spool of cable, 24 cable guides Brand Name Nuheat Warranty 25 years Heated Area Size Covered 30 Amp Draw 3 Total Watts 360 watts Custom Size Options None. Standard lengths only. No customization Cable strap or guides Cable guides are included in the kit Acceptable Floor Coverings Tile, Stone,Granite, Marble, Slate, Engineered wood, Laminate
